RENEWABLE HOT WATER
Biomass Fired Hot Water Boilers
Isimek delivers both saturated and superheated biomass fired hot water boilers in the capacity range of 500 000 kcal/h (580 kW) to 20 000 000 kcal/h (23 256 kW). Outlet water temperature may range from 90°C to 140°C.
Our hot water systems use renewable biomass to produce process hot water that is used as energy source in various production processes.
RENEWABLE HOT WATER
Technical features
Our advanced biomass hot water boilers are designed to be
energy efficient and deliver carbon neutral sustainable energy.
Hot water produced is used for thermal requirements in factories, residential heating,
regional heating, forestry and many other sectors.
Standard 90°C water operating temperature with capacity to be designed as a superheated boiler of up to 140°C water operating temperature.
_____
Designed and manufactured according to 3 bar operating pressure.
_____
Maximum capacity of 20 000 000 kcal/hr (23 256 kW).
_____
Thermal efficiency of up to 94%.
_____
PLC control system optimises combustion and ensures stable operating conditions.
_____
Automatic pipe cleaning system reduces maintenance downtime and increases efficiency.
_____
RENEWABLE HOT WATER
References

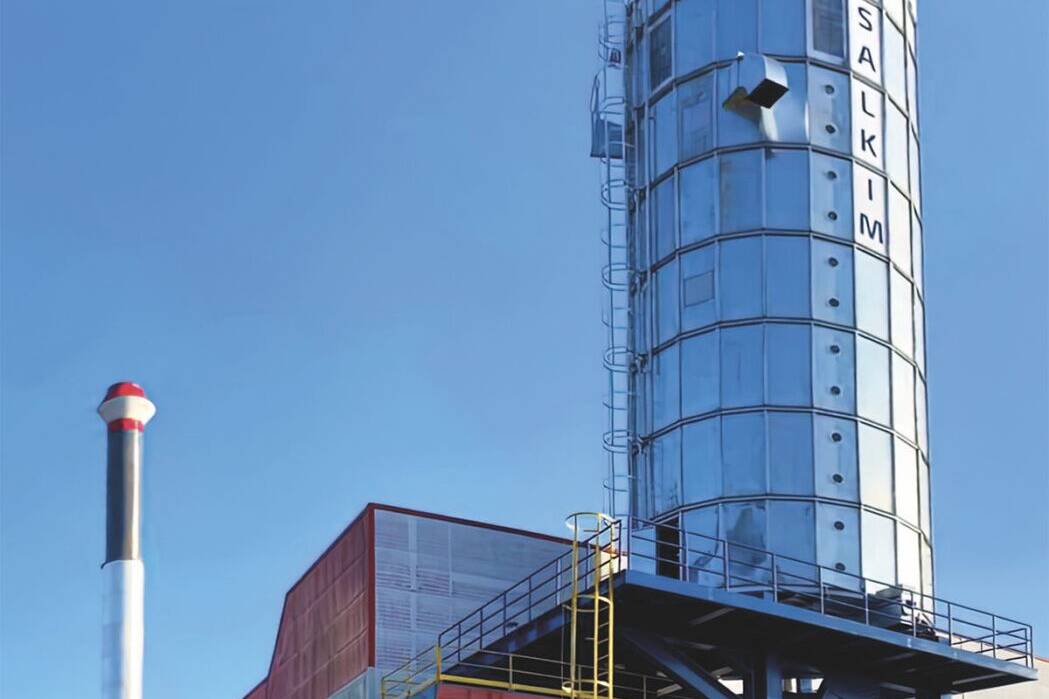

Hot Water 6.970 MW (6 000 000 kcal/hr) @6 bar
2021, Timber Industry, 50% moisture content woodchips & sawdust, Salkım Forest Products. Inc., Düzce, Turkey

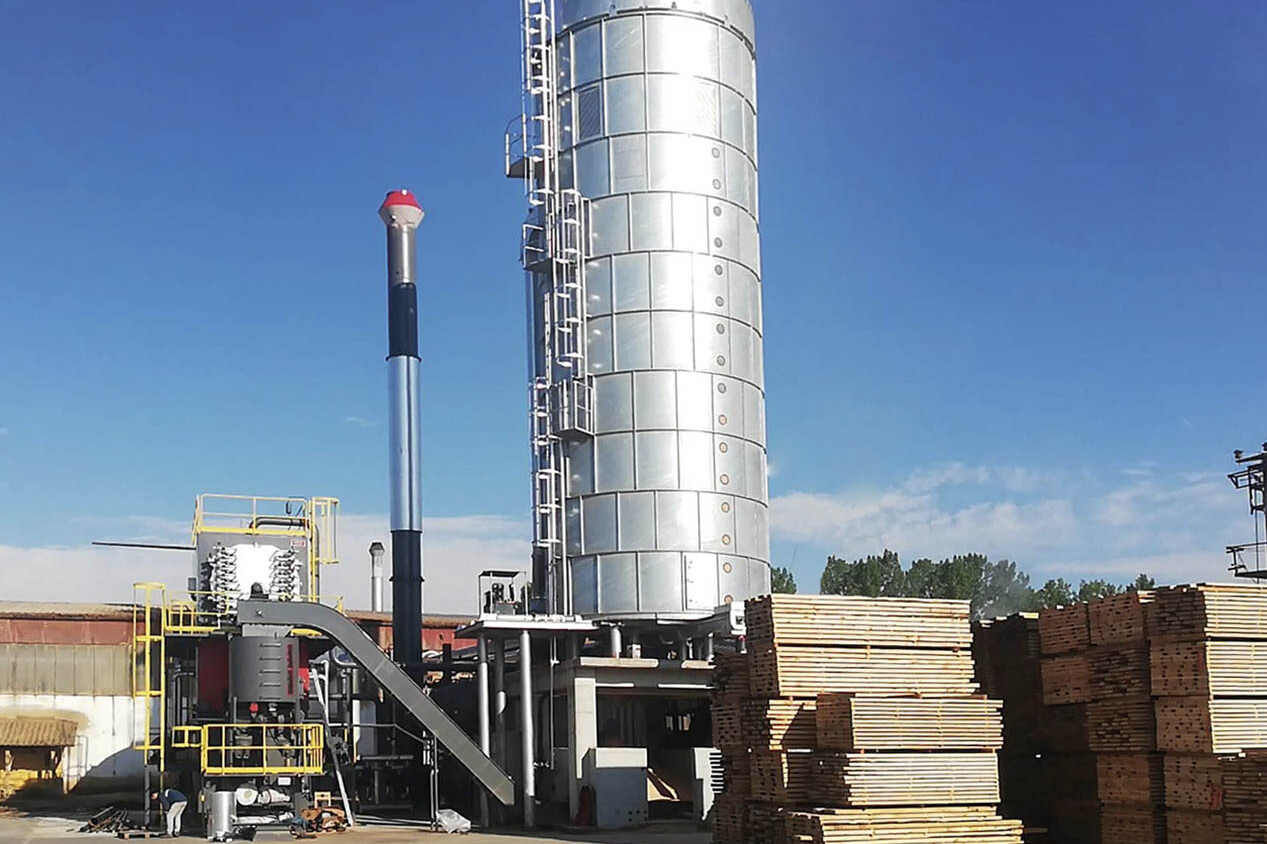

Hot Water 1.666 MW (1 450 000 kcal/hr) @6 bar
2021, Timber Industry, 50% moisture content woodchips & sawdust, Kuruoğlu Timber Processing, Düzce, Turkey

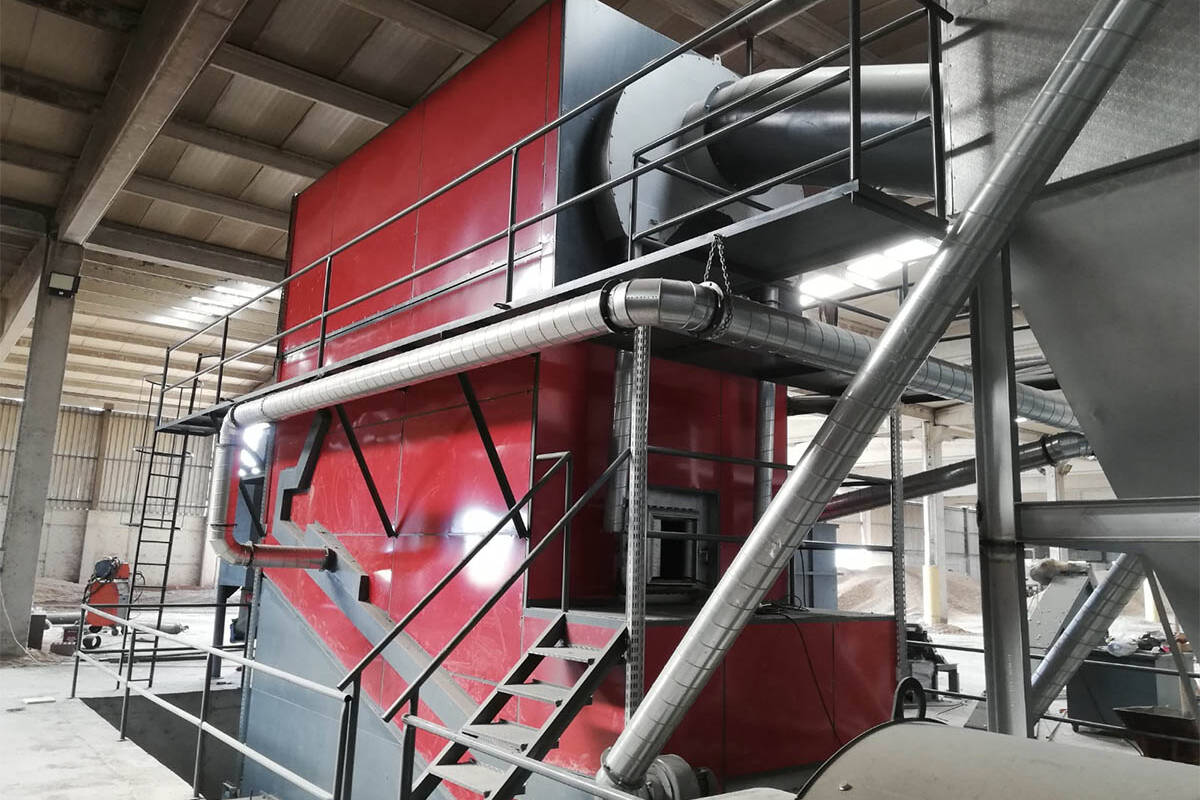

Hot Water 7 MW (6 000 000 kcal/hr) @ 3 bar
2018, Poultry Industry, Poultry litter with manure and woodchips, Örs Poultry, Balikesir, Turkey

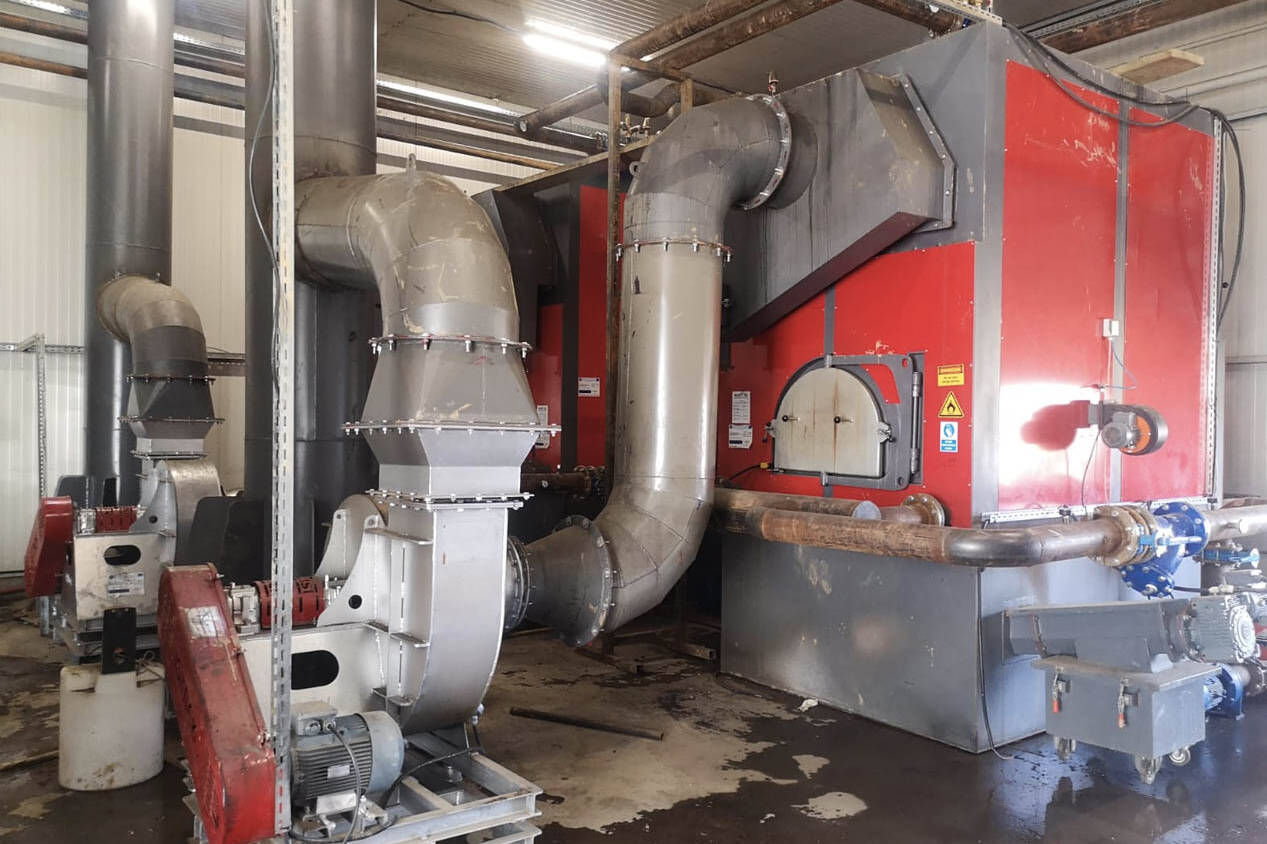

Hot Water 1 150 kW (1 000 000 kcal/hr) @ 3 bar
2018, Agriculture (Glasshouse) Industry, Dry Sawdust, Hortix, Maramures, Romania

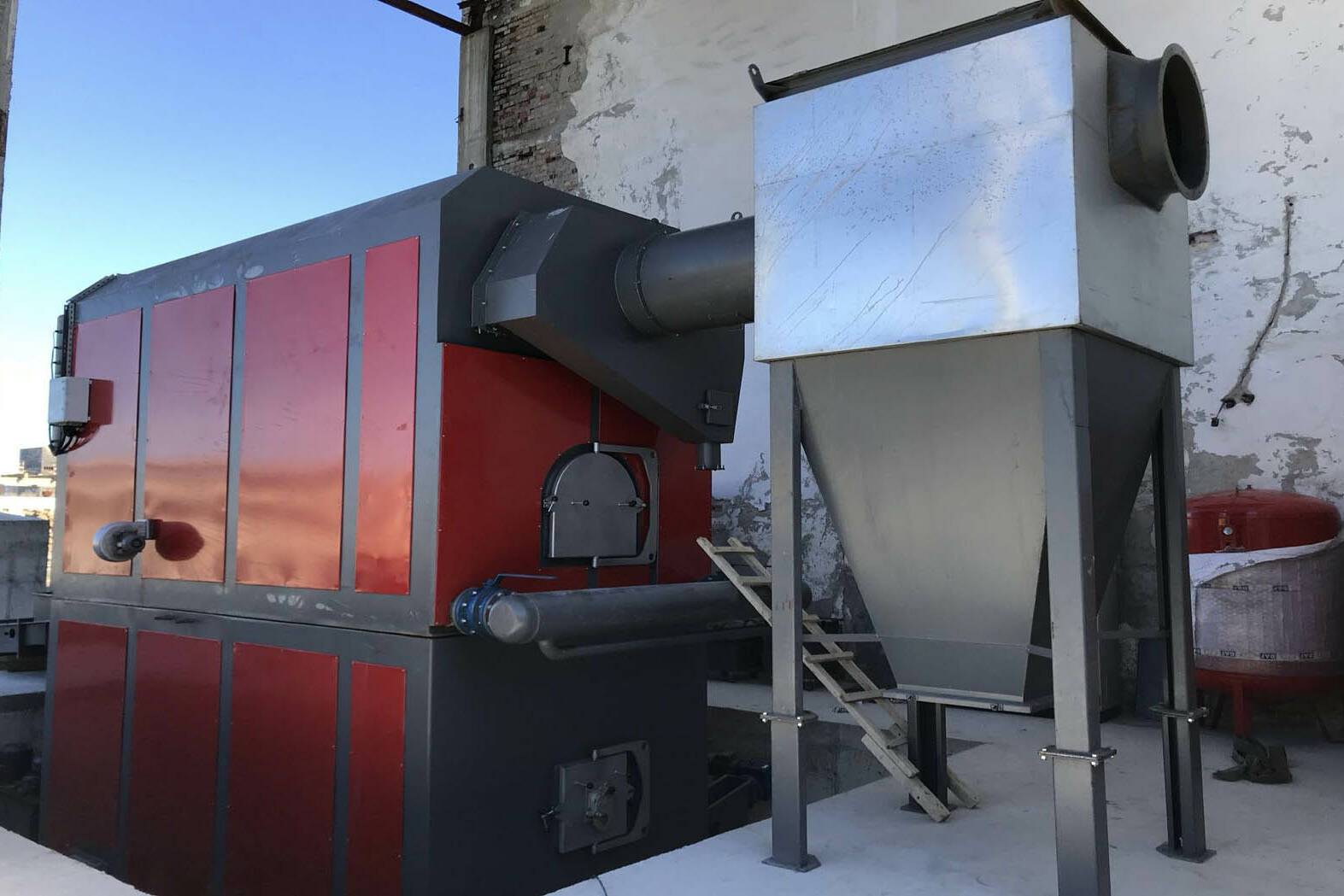

Hot Water 5.200 MW (4 500 000 kcal/hr) @ 6 bar
2019, Furniture Industry, 50% moisture content woodchips, Ekoefekt Sivolosa, Svishtov, Bulgaria
